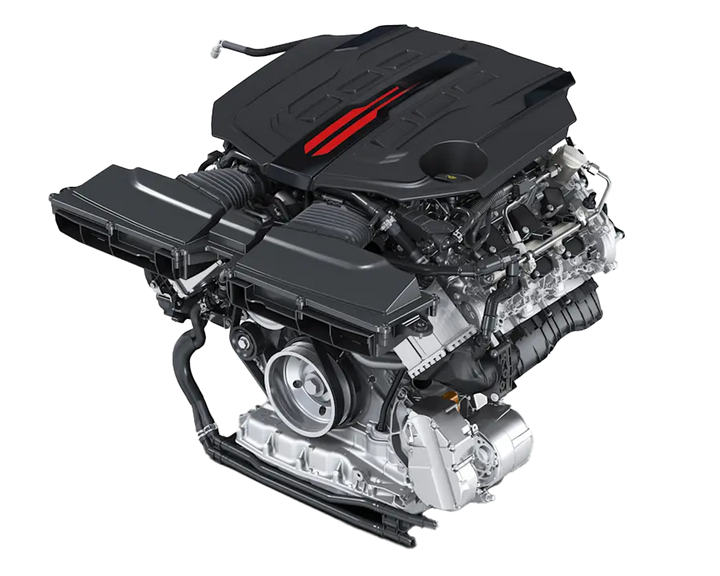

Volkswagen EA839 2.9
Overview.
The EA839 2.9 TFSI is the biturbo variant of Volkswagen Group's V6 platform. Two turbochargers sit in the hot-V between the cylinder banks, keeping the exhaust paths extremely short. That is why the engine responds almost without lag.
Factory output is 450 hp and 600 Nm in the RS4 B9 and RS5 F5, and 440 hp in the Porsche Cayenne S.
Modifications.
Software
Stage 1 consists of ECU and TCU tuning. All factory hardware stays unchanged.
Software + Hardware
Stage 2 adds supporting airflow and cooling upgrades for higher and more consistent performance.
Weak Points.
Timing Chain & Tensioner Wear
The timing chain sits at the back of the engine, on the transmission side. The tensioner can wear under sustained load, and the 2.9 makes around 100 hp more than the single-turbo variant of the same architecture.
Carbon Build-Up
The 2.9 injects directly into the combustion chamber, so no fuel ever washes over the intake valves. Deposits build up the same way as on the 3.0, but the higher load of the biturbo tends to bring them on sooner.
Oil Consumption
Oil consumption rises with load, and the biturbo runs both higher boost and higher exhaust temperatures than the 3.0. Some units consume noticeably more under spirited use.
Water Pump & Thermostat Failure
The cooling components can leak or fail, risking overheating on a hot-V turbo engine where heat soak is already high.
Heat Soak & Cooling Stress
The turbos sit inside the V, so intake and oil temperatures climb quickly during spirited driving.
Ignition Issues
The biturbo runs meaningfully higher cylinder pressure than the 3.0. Tuned setups load the ignition system across all six cylinders, and spark blowout appears earlier than on the single-turbo variant.
ZF 8HP Transmission & Driveline Stress
The ZF 8HP automatic is strong, but big torque figures still stress it over time.
Rocker Arm Bearing Wear (pre mid-2018)
A known design weakness of the EA839: the needle roller bearings in the rocker arms were dimensioned too small in early engines. Audi enlarged them considerably during production. If the wear goes unnoticed, the valvetrain can take damage.
Rear Main Seal Leakage
The crankshaft seal at the transmission end is a known weak point on the EA839. Oil seeps out at the joint between engine and gearbox, typically between 60,000 and 100,000 km.
Maintenance.
Oil Changes
Two chargers in the hot-V put more heat into the oil than any conventional layout. On tuned cars, stay at the short end of the interval.
Spark Plug Service
Six cylinders under biturbo pressure. Worn plugs show as misfires under load long before anything is noticeable at idle.
Warm-Up Procedure
Oil temperature climbs quickly with both chargers in the V, but the block itself takes longer. Go by oil temperature, not coolant.
Cool-Down Habits
With both turbochargers between the cylinder banks, heat has nowhere to go once the engine stops. A short idle before shutdown protects the bearings.
Cooling System Maintenance
Regularly inspect:
Especially important on tuned cars.
Transmission Service
ZF 8HP servicing becomes more important on tuned setups.
Water Pump Inspection
Failures are commonly reported well before 80,000 km on this platform.
A failed pump left in place can let the vacuum system draw in coolant, which then takes the vacuum pump and brake servo with it.
Valvetrain Check (pre mid-2018)
Early engines carry the undersized rocker arm bearings.
