Volkswagen EA839 3.0
Overview.

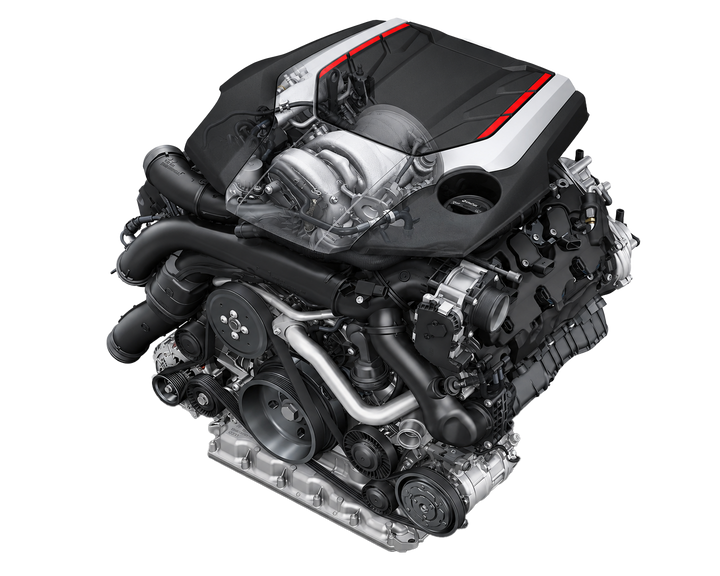

The EA839 is Volkswagen Group’s turbocharged V6 engine platform, used across Audi and Porsche performance models. It is available in both single-turbo and twin-turbo configurations depending on the application.
Modifications.
Software
Stage 1 consists of ECU and TCU tuning. All factory hardware stays unchanged.
Software + Hardware
Stage 2 adds supporting airflow and cooling upgrades for higher and more consistent performance.
Weak Points.
Timing Chain & Tensioner Wear
A known EA839 weak point: the chain tensioner can wear, especially under sustained load and aggressive tuning.
Carbon Build-Up
The direct-injection V6 accumulates intake-valve deposits over time, like all DI engines.
Oil Consumption
Some EA839 units consume more oil than expected, particularly under spirited use.
Water Pump & Thermostat Failure
The cooling components can leak or fail, risking overheating on a hot-V turbo engine where heat soak is already high.
Heat Soak & Cooling Stress
The turbo sits inside the V, so intake and oil temperatures climb quickly during spirited driving.
Ignition Issues
Higher boost on tuned setups stresses the ignition system across all six cylinders.
ZF 8HP Transmission & Driveline Stress
The ZF 8HP automatic is strong, but big torque figures still stress it over time.
Maintenance.
Oil Changes
The single twin-scroll charger also sits in the hot-V, but with one turbo instead of two the thermal load stays below that of the 2.9.
Spark Plug Service
Six cylinders under boost. Worn plugs show as misfires under load long before anything is noticeable at idle.
Warm-Up Procedure
Oil temperature climbs quickly with the charger in the V, but the block itself takes longer. Go by oil temperature, not coolant.
Cool-Down Habits
The charger sits between the cylinder banks, so heat lingers after shutdown. A short idle protects the bearings.
Cooling System Maintenance
Regularly inspect:
Especially important on tuned cars.
Transmission Service
ZF 8HP servicing becomes more important on tuned setups.
