Volkswagen EA825
Overview.

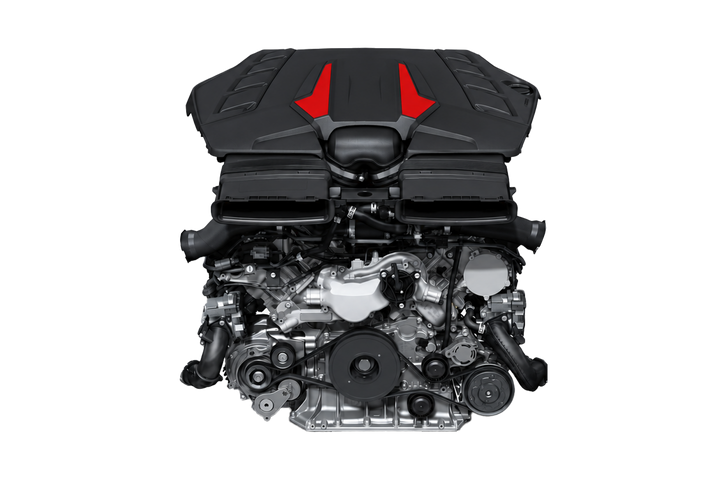

The EA825 is the 4.0L biturbo V8 that Porsche developed for the Volkswagen Group. Both turbochargers sit in the hot-V between the cylinder banks, which keeps the charge paths short and throttle response direct. Under light load, Cylinder on Demand (CoD) shuts down four cylinders.
Factory output is 600 hp and 800 Nm in the RS6 C8 and RS7 C8, 630 hp in the Performance versions, and 640 hp in the Cayenne Turbo GT.
Modifications.
Software
Stage 1 consists of ECU and TCU tuning. All factory hardware stays unchanged.
Software + Hardware
Stage 2 adds supporting airflow and cooling upgrades for higher and more consistent performance.
Weak Points.
Heat Soak & Cooling Stress
The twin-turbo hot-V layout places both turbos directly inside the V, creating extreme thermal loads. High intake air temperatures (IATs) and elevated oil temps are the primary bottlenecks on tuned EA825s.
Carbon Build-Up
The EA825 is purely direct-injected (FSI), so fuel never washes over the intake valves, and carbon builds up on them over time.
PCV / Crankcase Ventilation & Oil Separator
The EA825’s complex PCV system sits inside the hot-V region. The combination of high ambient temperatures and aggressive crankcase pressure subjects the oil separator membrane to high wear.
Timing Chain & Tensioner Wear
The timing chain setup is located at the back of the engine (transmission side). While vastly improved over older 4.0T generations (like the EA824), heavy tuning and high mileage can strain tensioners and guides.
Cylinder-on-Demand (CoD) & Active Mount Dynamics
The CoD system shuts down four cylinders under light engine load to save fuel. It uses active engine mounts and exhaust valves to cancel out V4 vibrations and acoustic drone.
Turbocharger, Oil Strainers & Wastegate Wear
The EA825 runs twin-scroll turbochargers positioned in the hot-V. High boost levels push these units to their mechanical and thermal limits.
ZF 8HP Transmission & Driveline Stress
The EA825 is paired with heavy-duty variants of the ZF 8-speed automatic (e.g., 8HP90 / 8HP95). High-torque tunes (>900 Nm) push torque converters, internal clutches, and the Quattro/AWD transfer cases hard.
Maintenance.
Oil Changes
Both turbochargers sit inside the V. The oil carries away heat that a conventional layout never puts into it, which makes the interval more critical here than on any other engine in the range.
Spark Plug Service
Eight cylinders under high boost. Plug wear scales with cylinder pressure, and tuned V8s go through plugs fastest.
Warm-Up Procedure
Oil temperature climbs quickly because the turbos sit in the V, but the block itself takes longer. Go by oil temperature, not coolant.
Cool-Down Habits
With the turbochargers between the cylinder banks, heat has nowhere to go once the engine stops. A short idle before shutdown protects the bearings.
Cooling System Maintenance
Regularly inspect:
Especially important on tuned applications.
Transmission Service
Regular ZF8 servicing is important on high-torque setups.
