Volkswagen EA824
Overview.

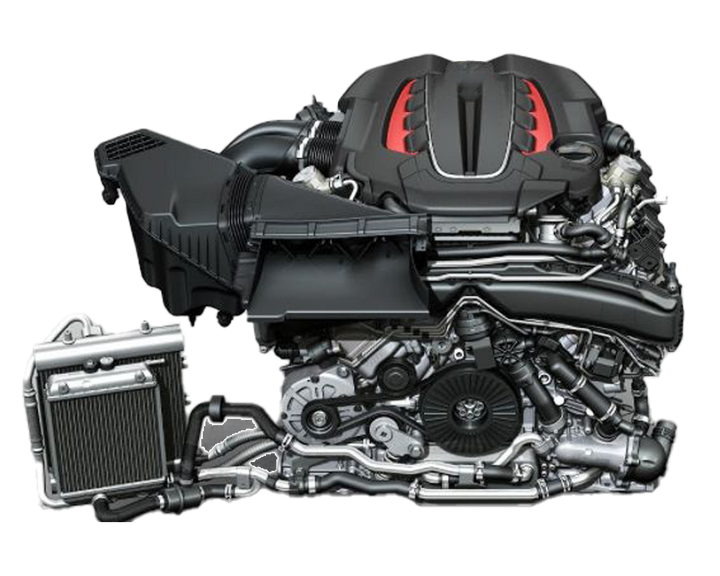

The EA824 is Volkswagen Group's first 4.0L biturbo V8 and the predecessor of the EA825. Both turbochargers sit in the hot-V between the cylinder banks, and under light load Cylinder on Demand (CoD) shuts down four cylinders.
Factory output ranges from 420 hp in the S6 C7 to 605 hp in the S8 Plus. The engine responds extremely well to tuning, especially with upgraded cooling and ethanol fuel setups.
Modifications.
Software
Stage 1 consists of ECU and TCU tuning. All factory hardware stays unchanged.
Software + Hardware
Stage 2 adds supporting airflow and cooling upgrades for higher and more consistent performance.
Weak Points.
Oil Screen Clogging & Turbo Oil Starvation
The single biggest EA824 weak point: the oil supply module has a screen that can clog and starve the hot-V turbos of oil.
Oil Consumption
Audi acknowledged high oil consumption on the 4.0 TFSI and introduced revised piston rings in later production.
Heat Soak & Cooling Stress
Both turbos sit inside the V, so intake and oil temperatures climb fast under sustained load.
Carbon Build-Up
The direct-injection V8 accumulates intake-valve deposits over time, like all DI engines.
Coolant Leaks & Aging Seals
Coolant leaks near the top of the engine or under the intake manifold are common as seals age on higher-mileage cars.
PCV & Oil Separator
The crankcase ventilation and oil-separator system can fail, causing vacuum leaks and oil carryover.
Valve Float at High Power
At very high power levels, owners have reported valve float on cylinder 6.
Transmission & Driveline Stress
RS6, RS7 and S8 use the ZF 8HP automatic, while S6 and S7 run the DL501 seven-speed S tronic. Both are durable, but big torque figures stress them and the driveline over time.
Maintenance.
Oil Changes
Both turbochargers sit inside the V. The oil carries away heat that a conventional layout never puts into it, which makes the interval more critical here than on any other engine in the range.
Spark Plug Service
Eight cylinders under high boost. Plug wear scales with cylinder pressure, and tuned V8s go through plugs fastest.
Warm-Up Procedure
Coolant reaches operating temperature well before the oil does. Go by oil temperature, not the coolant gauge, before asking for boost.
Cool-Down Habits
With the turbochargers between the cylinder banks, heat has nowhere to go once the engine stops. A short idle before shutdown protects the bearings.
Cooling System Maintenance
Regularly inspect:
Especially important on tuned or track-driven cars.
Transmission Service
Transmission fluid servicing (ZF 8HP or DL501 S tronic depending on model) becomes more important on tuned cars.
